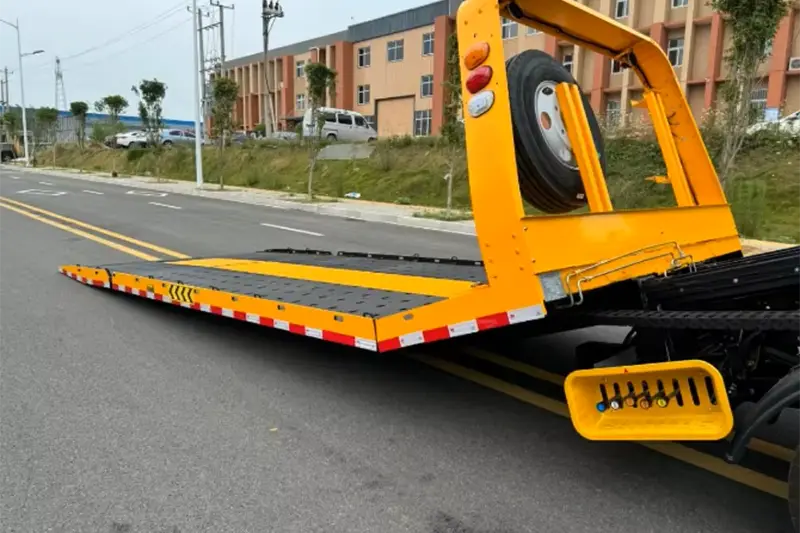

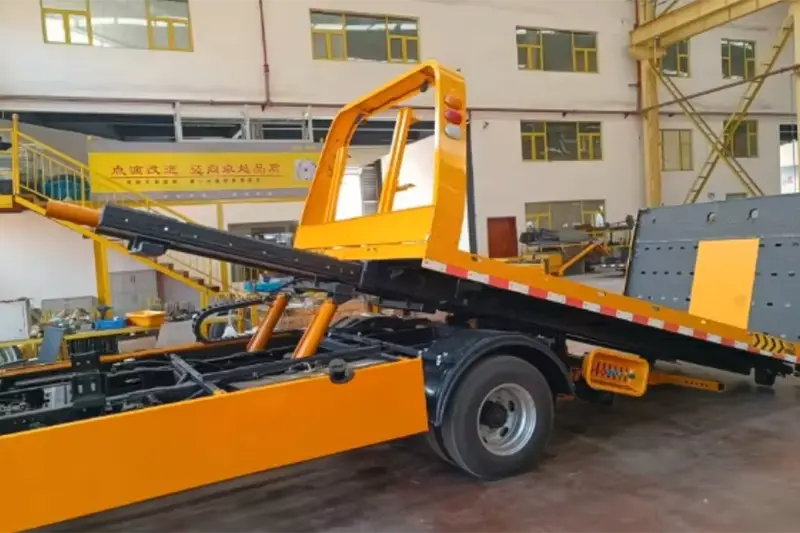

Flatbed Trailer Body

The Flatbed Trailer Body is a professional independent upper body accessory for road rescue vehicles, sold separately without chassis, specially designed for light and medium-sized truck chassis refitting, widely used in urban road rescue, fault vehicle transfer and small rescue team operation scenarios. Adopting integrated molding and high-strength steel manufacturing process, this upper body realizes one tow two dual rescue mode, carrying one fault vehicle on the flatbed and towing another at the rear, with high operation efficiency and strong adaptability. It is an ideal choice for global vehicle refitting factories, rescue equipment suppliers and maintenance enterprises to upgrade or refit rescue vehicles independently, matching most mainstream light truck chassis on the market.

Core Product Features & Advantages

Heavy-Duty High-Strength Structure: The whole main structure is made of domestic high-strength steel plates, with strong load-bearing and wear resistance. Key load-bearing parts including tow arms and lift arms adopt special heat treatment and reinforcement processes, with high toughness and pressure resistance, ensuring long-term stable use under heavy load and frequent operation.

Integrated Efficient Hydraulic System: Built-in complete hydraulic control system, matched with 4-ton hydraulic winch equipped with 21m steel wire rope, professional lifting device and separable flatbed mechanism, supporting multiple flexible operation modes, stable traction and lifting, smooth action without jamming, meeting various road rescue needs.

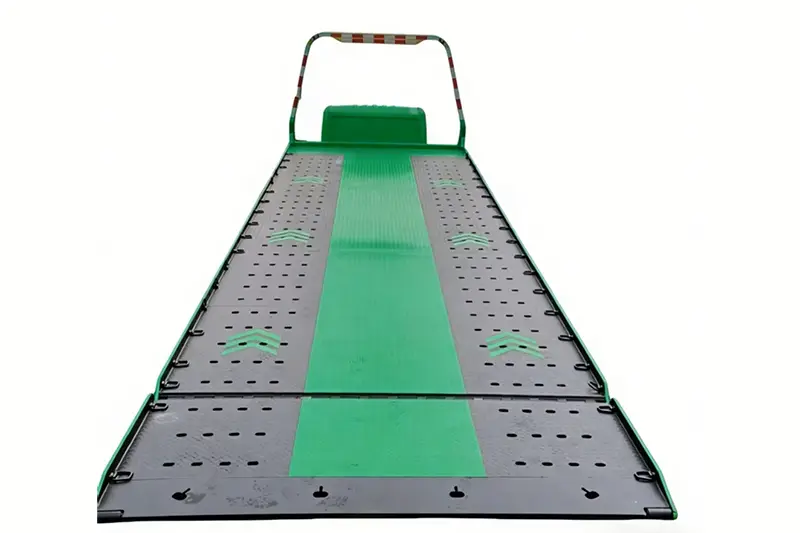

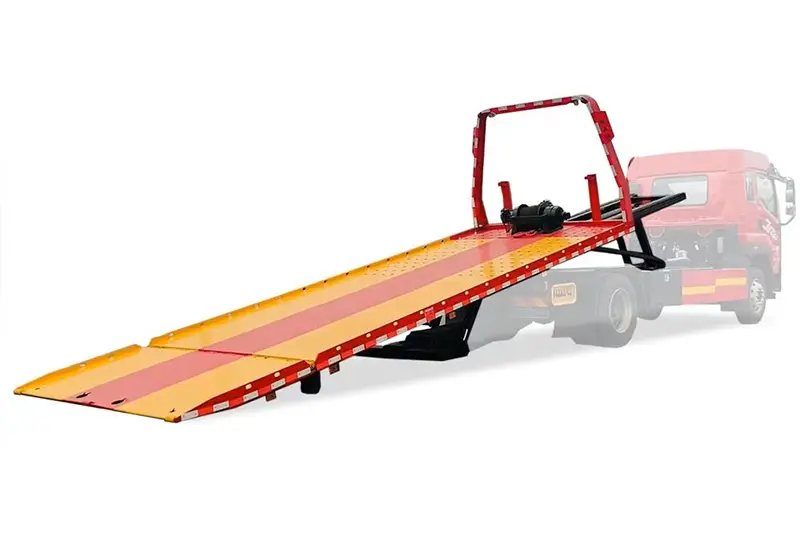

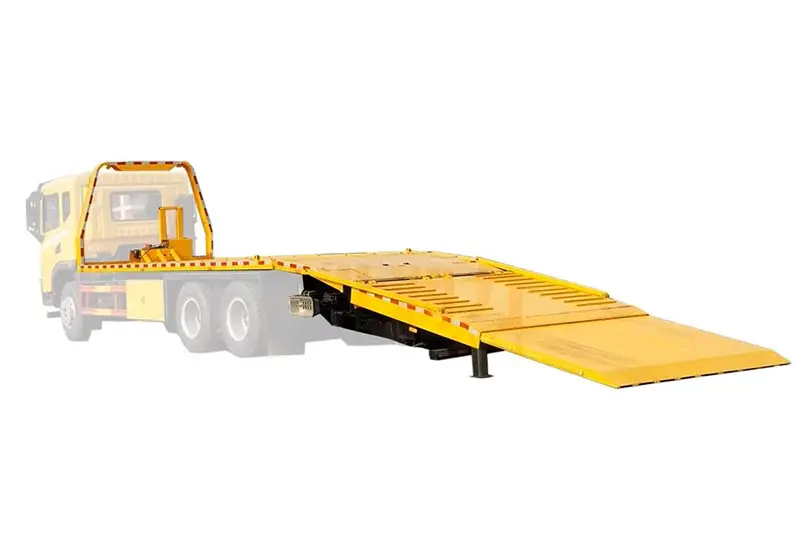

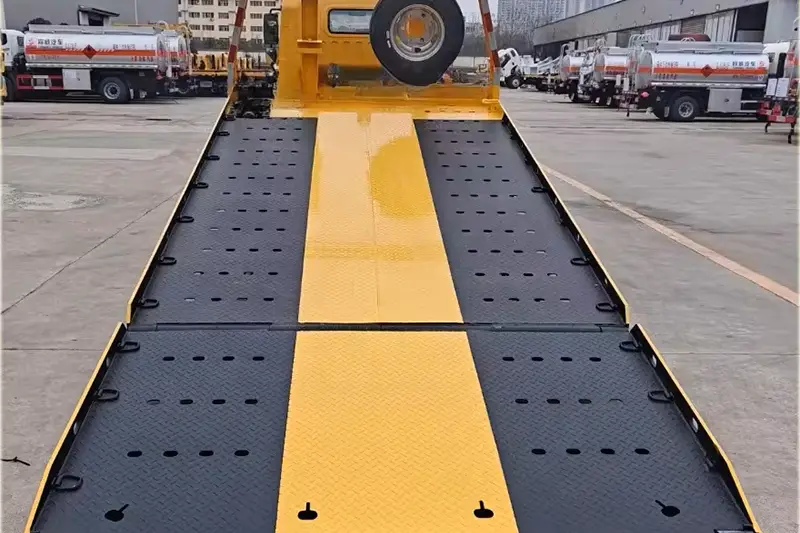

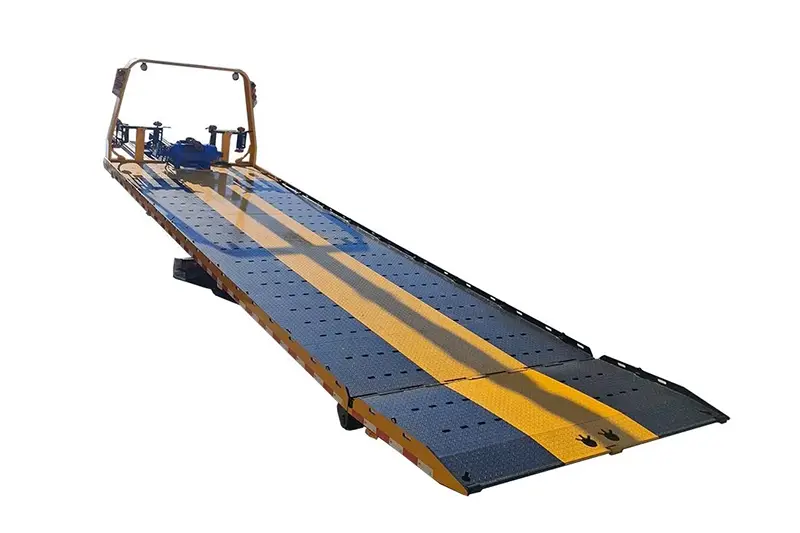

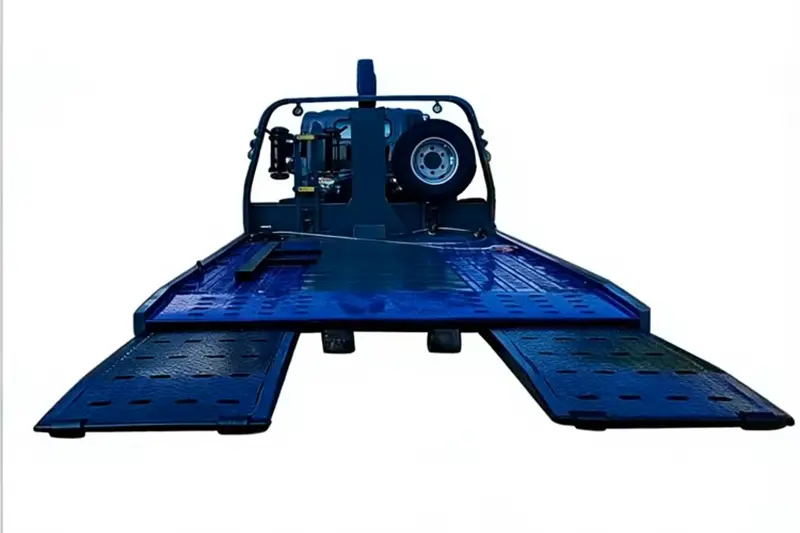

One Tow Two High-Efficiency Flatbed: Adopts professional one tow two flatbed design, overall dimension 5600×2400mm, made of 4mm one-time forming pressed checkered plate, anti-slip and load-bearing. It can carry one 4-ton fault vehicle on the bed and tow another at the rear, greatly improving rescue and transportation efficiency, adapting to various urban and road rescue scenarios.

Intelligent & Humanized Operation: Standard double-side linkage operation system, operable on both left and right sides of the upper body, flexible and convenient; optional wireless remote control system, realizing single-operator remote independent operation, keeping operators away from dangerous working area and greatly improving operation safety.

Complete Auxiliary Accessories: Standard full set of auxiliary tools including 2 sets of assist wheelers, 2 pcs L-shaped tire holders, 2 pcs square fork racks, 4 pcs bundle straps, 2 working lights and 2 sets of warning lights, ready for immediate use after installation, no need to purchase additional accessories separately.

Complete Main Parameter Table

Recommended Chassis Matching Parameters

This Flatbed Trailer Body has high adaptability, specially designed for light and medium-sized truck chassis, with clear recommended matching parameters to ensure perfect installation and stable operation. Recommended GVW: 4495kg ~ 8280kg; recommended wheelbase: 3360mm ~ 3800mm; recommended engine power: 80kW ~ 120kW; recommended tire models: 6.50R,7.00R,7.50-16, 235/75-17.5,825R. Our technical team can provide targeted installation guidance according to the specific chassis model provided by customers, ensuring smooth refitting and normal use.

Optional Customization Devices

We support diversified customized configuration for the wrecker bed superstructure to meet different regional and functional needs, optional devices include: long line engineering light with siren and speaker; 5-15 ton high-tonnage hydraulic winch; cold area exclusive vaccine heating function; 1-2 ton hydraulic lifting tailplate; reverse camera and other auxiliary equipment. Customers can choose optional configurations according to actual use needs, and we also support personalized design and processing.

Company Production Process & Technical Strength

Hubei Runli Special Automobile Co., Ltd. focuses on technological innovation and quality control of special vehicle upper bodies, equipped with advanced Solidworks computer-aided 3D design software, our R&D and design team has rich industry experience, effectively ensuring the advanced and practicality of product design. Our complete production process flow includes: material pretreatment, laser cutting, plasma cutting & blanking, bending forming, precision welding, machining, integral coating (shot blasting + full automatic painting line), final assembly and quality inspection. We have complete sets of professional equipment for blanking, stamping, metal fabrication, welding, coating and final assembly, with full-process quality monitoring, strict implementation of production process standards, and comprehensive control of every production link, effectively improving product stability, reliability and service life.

Packaging, Shipping & After-Sales Service

We provide professional export packaging for the Flatbed Trailer Body, with full anti-collision, moisture-proof and rust-proof protection, suitable for sea and land cross-border transportation, and only support FOB and EXW trade terms to ensure safe and efficient transactions. We offer a standard 12-month quality warranty, complete English installation and operation manuals, exclusive remote video technical guidance for installation and operation, and 24/7 online technical consulting support, solving all worries for global bulk buyers and refitting enterprises.

FAQ

Q: Is this product including chassis? What chassis is it suitable for?

A: This product is wrecker upper body only, no chassis, suitable for light truck chassis with GVW 4495kg-8280kg, wheelbase 3360mm-3800mm, we provide installation guidance.

Q: Can we customize the tonnage, flatbed or optional devices?

A: Yes, we support customizing flatbed size, winch tonnage and various optional devices, just tell us your specific refitting and use needs.

Q: What warranty and after-sales support do you offer?

A: We provide 12-month quality warranty, remote video installation and operation guidance, and can supply relevant spare parts quickly through our dedicated department.
