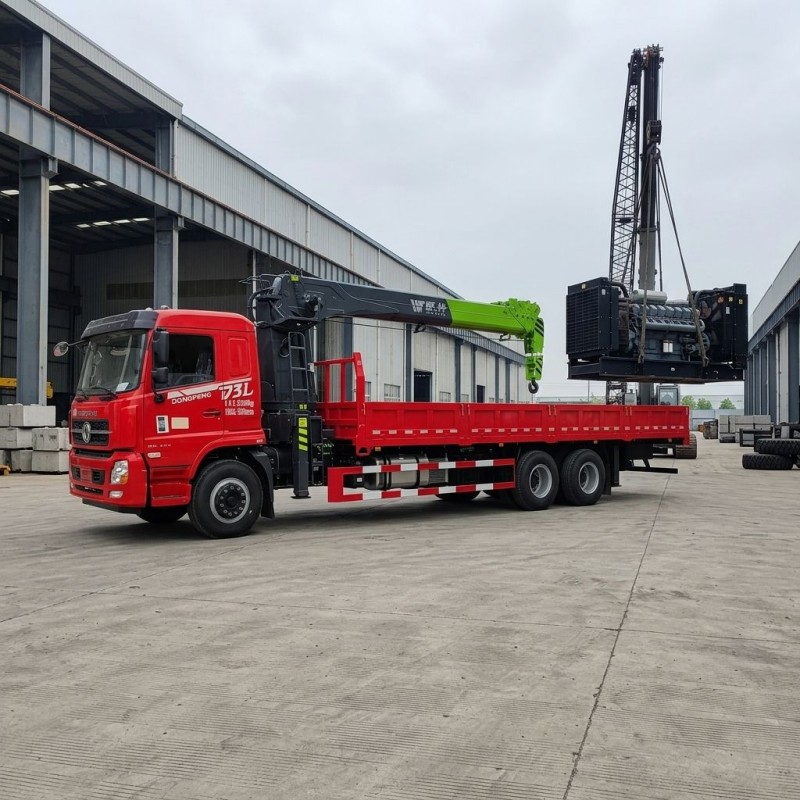

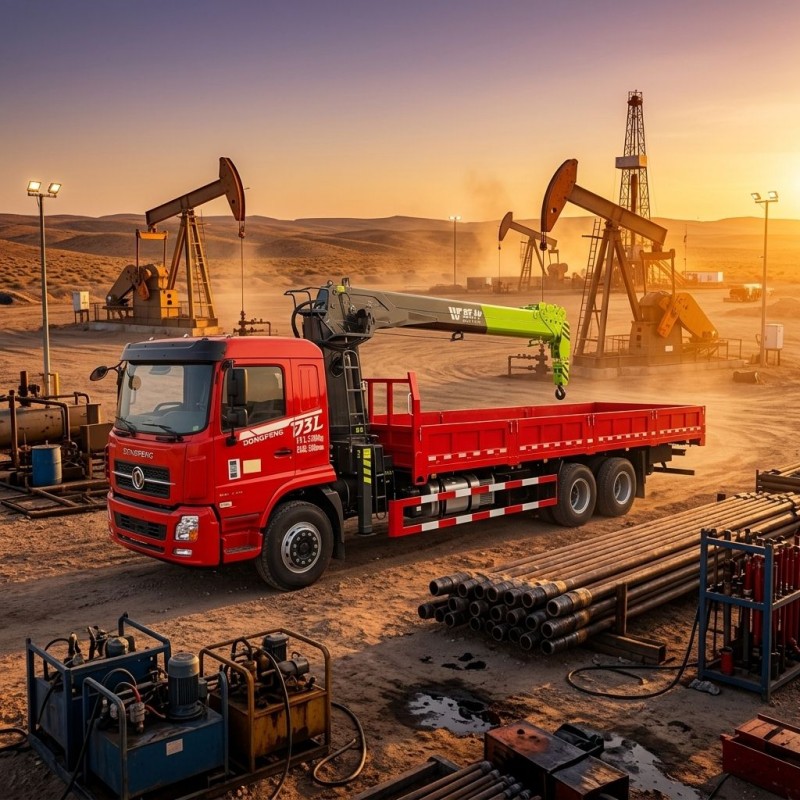

Dongfeng D3L Truck-Mounted Crane Heavy-Lift Precision for Demanding Job Sites

The Runli's Dongfeng D3L Truck-Mounted Crane Heavy-Lift Precision for Demanding Job Sites is equipped with a WEI SHEN 12-ton five-section crane, dual-pump system, and composite outriggers to support material loading, equipment handling, and job-site lifting operations.

Powered by a Yuchai YCS06270 six-cylinder Euro VI engine and paired with a Foton 9JS119 transmission with PTO, the truck features a reinforced three-layer frame and a 5-ton front axle with a 10-ton-rated rear axle configuration. With overall dimensions of 12,000 × 2,550 × 3,980 mm and a gross vehicle weight of 15,800 kg, it is designed for combined transport and lifting tasks.

Product Features

1. WEI SHEN 12-Ton Five-Section Crane

The Dongfeng D3L Truck-Mounted Crane Heavy-Lift Precision for Demanding Job Sites is equipped with a WEI SHEN 12-ton, five-section truck-mounted crane. Its boom configuration is designed to support lifting tasks at different positions, depending on the load, working radius, and operating limits.

The nominal 12-ton crane rating should not be interpreted as the lifting capacity at every boom position. The rated load chart should be reviewed to confirm the permitted load at the required working radius and boom extension.

2. Dual-Pump System for Crane Operations

The upper equipment configuration includes a dual-pump system. This is an important specification when evaluating the crane's hydraulic equipment and operating requirements. Hydraulic circuit design, simultaneous-function capability, working pressure, and flow rate should be confirmed with the manufacturer if they are critical to the intended application.

3. Composite Outriggers with Approximately 7.6-Meter Span

The crane is configured with dual-section composite outriggers with an approximate span of 7.6 meters. Properly deployed outriggers provide a supporting base for lifting operations when used on suitable ground.

The actual working setup must follow the manufacturer's operating instructions, including ground-bearing requirements, vehicle leveling, outrigger positioning, and restrictions specified in the crane load chart.

4. Dongfeng 4×2 Chassis and Yuchai Engine

The truck uses a 4×2 Dongfeng chassis, model DFV1243GP6DJ, with left-hand drive and a stated Euro VI emission standard. Its Yuchai YCS06270 six-cylinder engine provides the vehicle's driving power.

This chassis configuration can be considered for road transportation and job-site delivery where a 4×2 vehicle meets the route, payload, and operating requirements. Suitability for specific roads and work sites should be verified before purchase.

5. Cargo Platform for Material Transportation

The cargo box measures 8,300 mm in length, 2,450 mm in width, and 550 mm in height. Its dimensions provide a substantial platform for transporting compatible construction materials, industrial supplies, and equipment.

The cargo platform is specified with a Dongfeng integrated riveted cargo box and a fully folded steel structure described as a three-side and five-bottom configuration. Cargo type, weight distribution, securing arrangements, and permissible payload should be confirmed for each transportation application.

6. Heavy-Duty Frame and Axle Configuration

The chassis specification includes a 300/8 + 6 + 8 mm three-layer extruded frame, a 5-ton front axle, and a 435 double rear axle rated at 10 tons. These components form part of the vehicle's structural and load-support configuration.

The final permissible vehicle load depends on the complete vehicle's approved gross weight, axle limits, crane installation, cargo weight, and local road regulations. Component ratings should not be treated as a substitute for certified payload information.

Technical Specifications

Note: Specifications are based on the supplied product information. Confirm the final technical datasheet, crane load chart, certified vehicle weight, payload, and applicable homologation documents before placing an order. The stated crane length of 19.3 m should be clarified with the manufacturer to establish whether it refers to the boom, maximum extension, or another measurement.

Applications

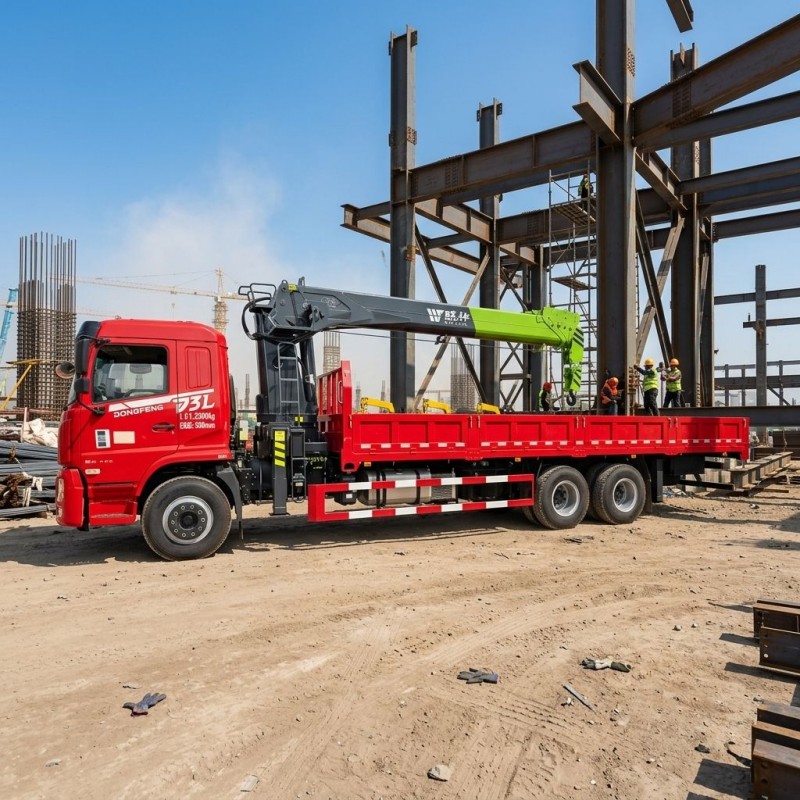

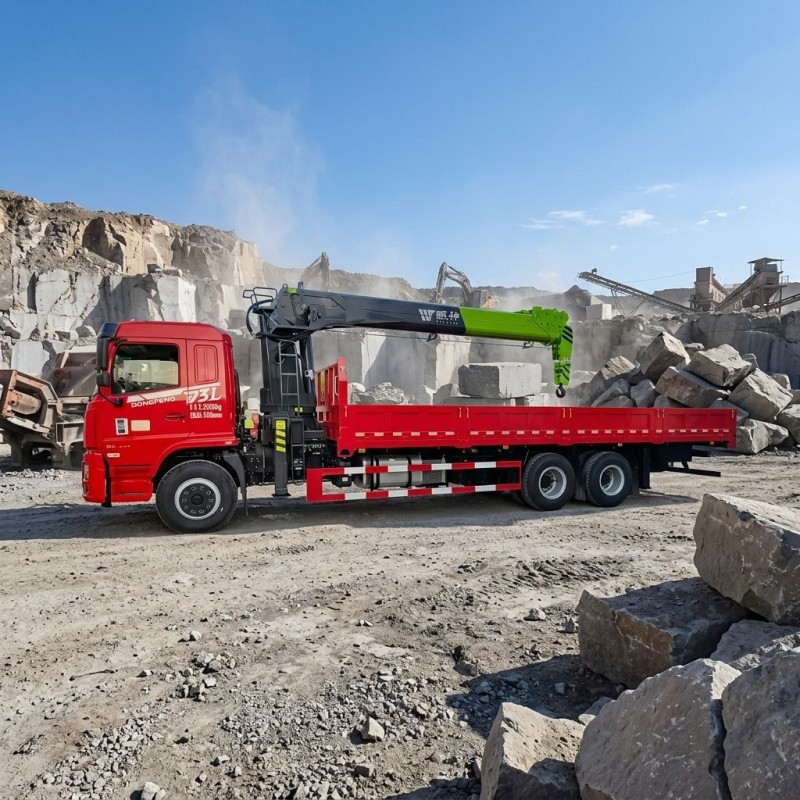

Construction Material Handling

The Dongfeng D3L Truck-Mounted Crane Heavy-Lift Precision for Demanding Job Sites can be considered for transporting and lifting compatible construction materials, such as steel components, building supplies, and other job-site materials. The cargo platform supports delivery, while the mounted crane can assist with positioning loads within its rated operating limits.

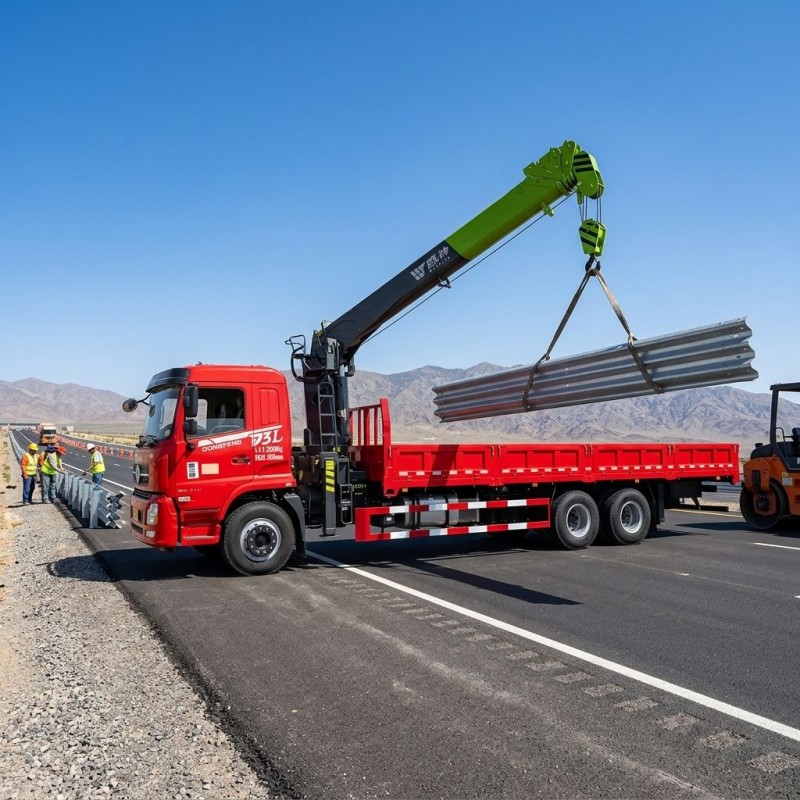

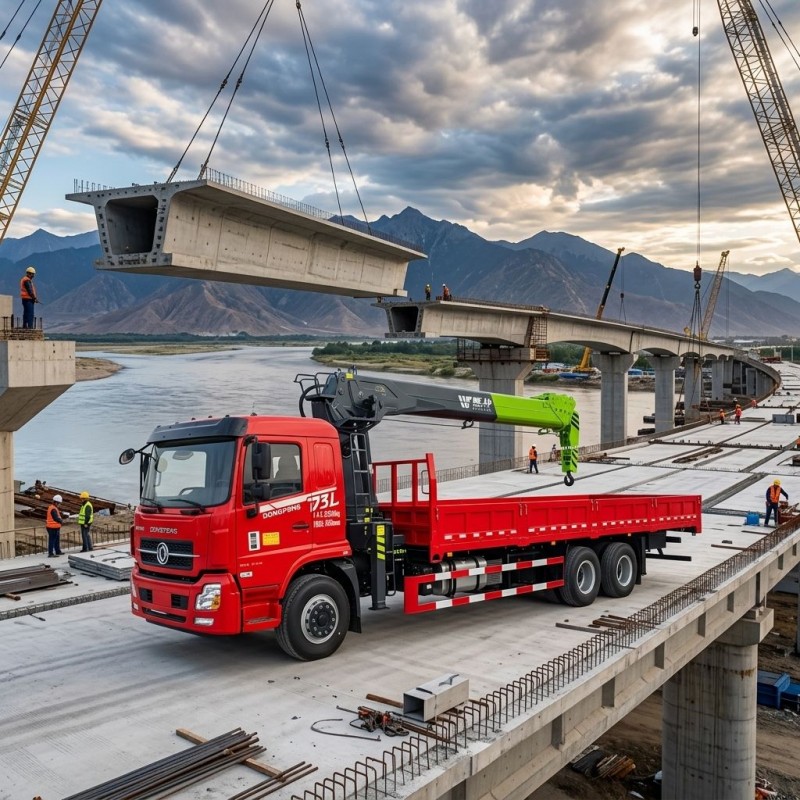

Infrastructure and Road Projects

Infrastructure projects often require materials and equipment to be delivered to work locations and lifted into position. A truck-mounted crane can combine these activities, subject to site access, ground conditions, lifting requirements, and local vehicle restrictions.

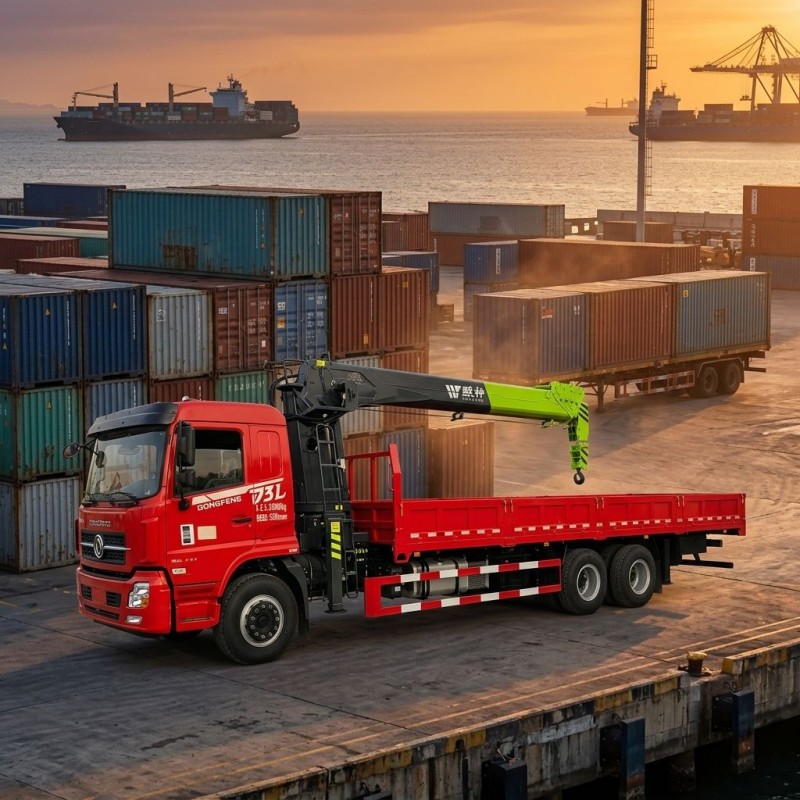

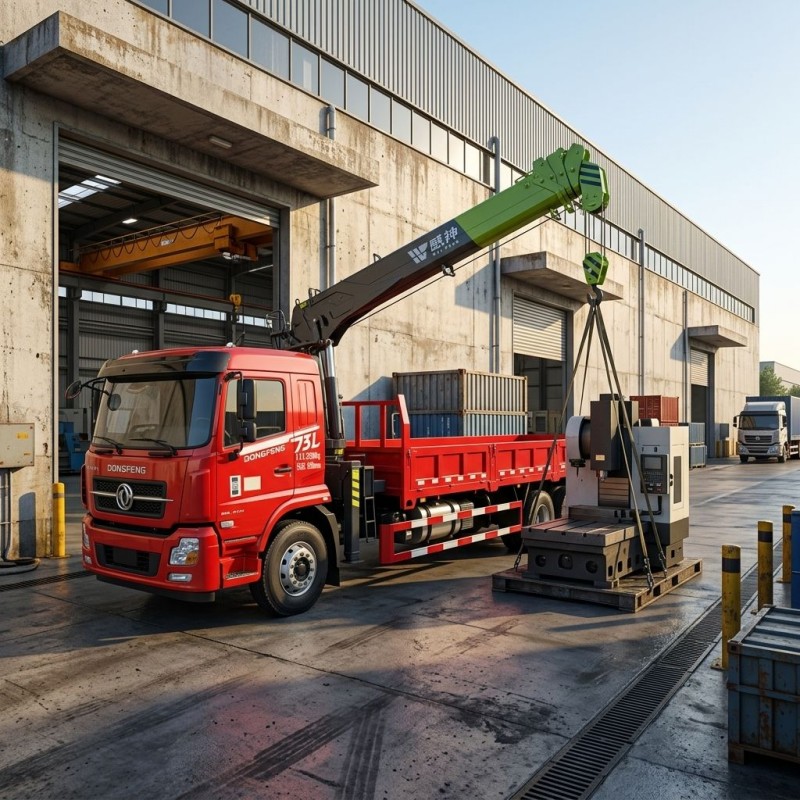

Industrial Equipment Delivery

For industrial maintenance and installation work, the vehicle may be suitable for transporting compatible equipment and assisting with unloading. The actual application depends on equipment weight, lifting points, dimensions, and the crane's rated capacity at the required working radius.

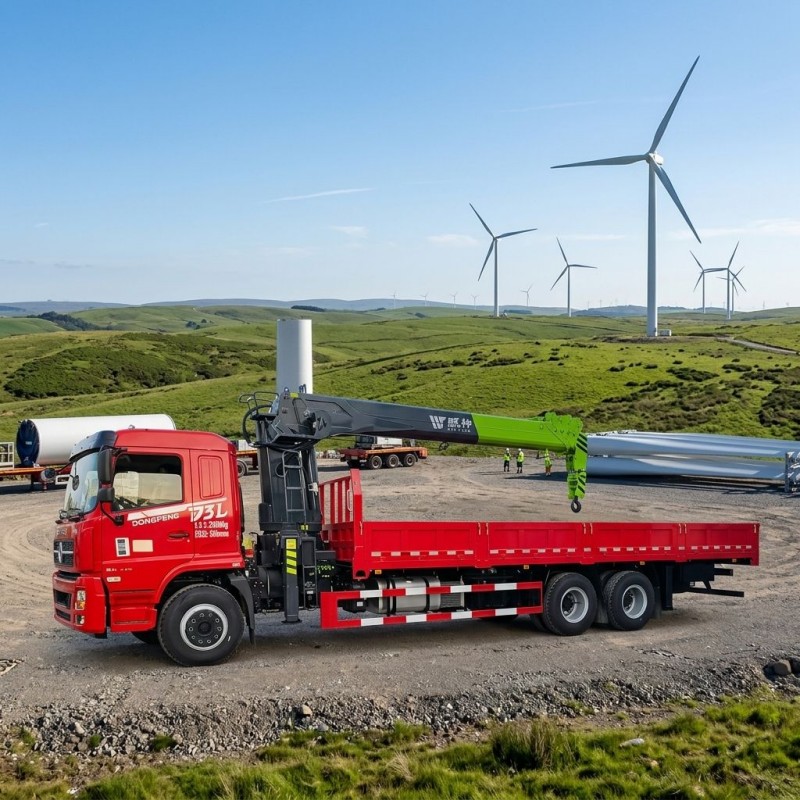

Utility and General Engineering Work

The combination of a cargo platform and a mounted crane may support selected utility installation, engineering maintenance, and general material-handling tasks. Project planners should assess the required lifting height, working radius, load characteristics, and access conditions before selecting the vehicle.

Why Choose Hubei Runli Special Automobile Co., Ltd.?

Hubei Runli Special Automobile Co., Ltd. was established in 2009 with registered capital of RMB 50 million. The company manufactures special-purpose vehicles and is identified in its company profile as a manufacturer listed by China's Ministry of Industry and Information Technology. Its registered trademark is Runzhixing, and its vehicle model code is SCS.

The company operates a facility covering approximately 110,000 square meters, including a 45,000-square-meter production workshop. According to its company information, the facility is equipped with 886 sets of major production and testing equipment and four automated special-vehicle production lines, with annual production capacity exceeding 5,000 special vehicles of various types.

Runli reports certifications covering quality management, environmental management, occupational health and safety management, and after-sales service. Its stated certifications include ISO 9001:2015, ISO 14001:2015, and GB/T 27922-2011 five-star after-sales service certification. The company also reports CCC certification for its products. The applicability and validity of specific certificates should be verified for the vehicle and destination market concerned.

For the Dongfeng D3L Truck-Mounted Crane, the vehicle configuration, chassis specifications, crane documentation, and manufacturer-provided certification records can serve as the basis for technical evaluation and procurement discussions.

Frequently Asked Questions

1. What is the rated lifting capacity of the Dongfeng D3L Truck-Mounted Crane?

The Dongfeng D3L Truck-Mounted Crane Heavy-Lift Precision for Demanding Job Sites is specified with a WEI SHEN 12-ton, five-section crane. The actual permitted lifting capacity depends on the working radius, boom extension, load position, outrigger setup, and the crane's rated load chart. The load chart should be obtained and reviewed before operation.

2. How long is the crane boom?

The supplied specifications state a crane length of 19.3 meters. Confirm with Hubei Runli whether this measurement refers to the boom's maximum extension, overall crane length, or another dimension before comparing it with a required lifting height or working radius.

3. What are the overall dimensions of the truck?

The stated overall vehicle dimensions are 12,000 mm long, 2,550 mm wide, and 3,980 mm high. These dimensions should be checked against local road limits, transport restrictions, access clearances, and job-site conditions.

4. What is the size of the cargo box?

The cargo box measures 8,300 × 2,450 × 550 mm. The permitted cargo weight must be confirmed separately using the approved vehicle payload and axle-load limits.

5. Which engine and transmission are used?

The listed engine is a Yuchai YCS06270 six-cylinder engine with a stated Euro VI emission standard. The transmission is specified as a Foton 9JS119 unit with a power take-off device. The exact engine and transmission codes should be reconfirmed on the final configuration sheet.

6. Is the truck suitable for lifting heavy equipment?

It may be suitable for handling equipment that falls within the crane's approved load limits and dimensional requirements. Before selecting the vehicle, compare the equipment weight and lifting points with the load chart, working radius, required lifting height, and site conditions.

7. What information should be confirmed before ordering?

Important items include the final chassis and engine configuration, crane load chart, boom measurement, outrigger span, vehicle gross weight and payload, certification requirements, destination-market compliance, and any required optional equipment. Providing the intended application and operating conditions helps the manufacturer confirm whether the configuration is appropriate.
