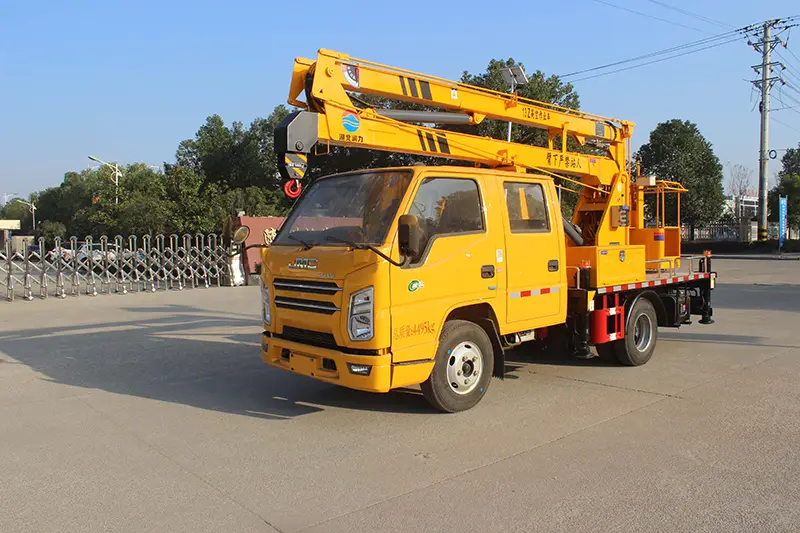

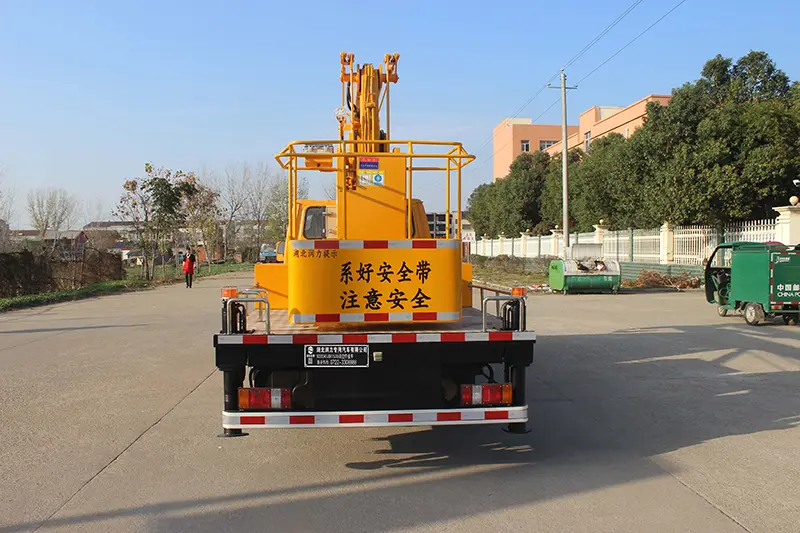

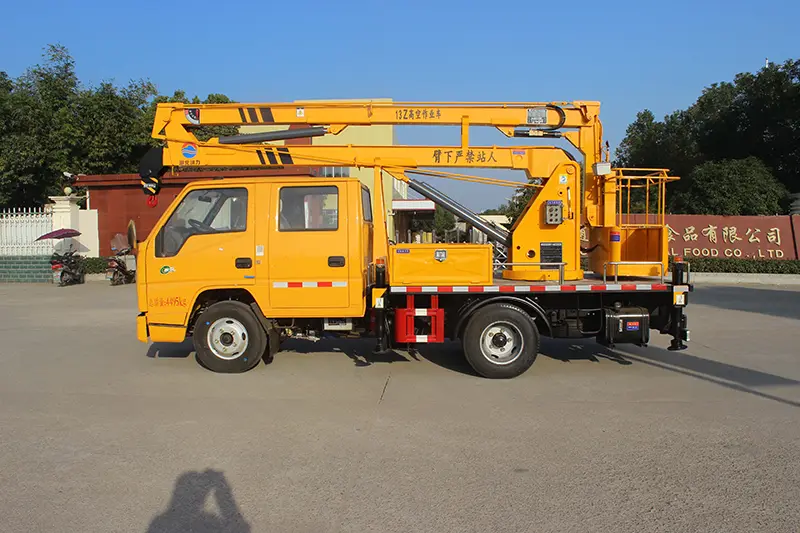

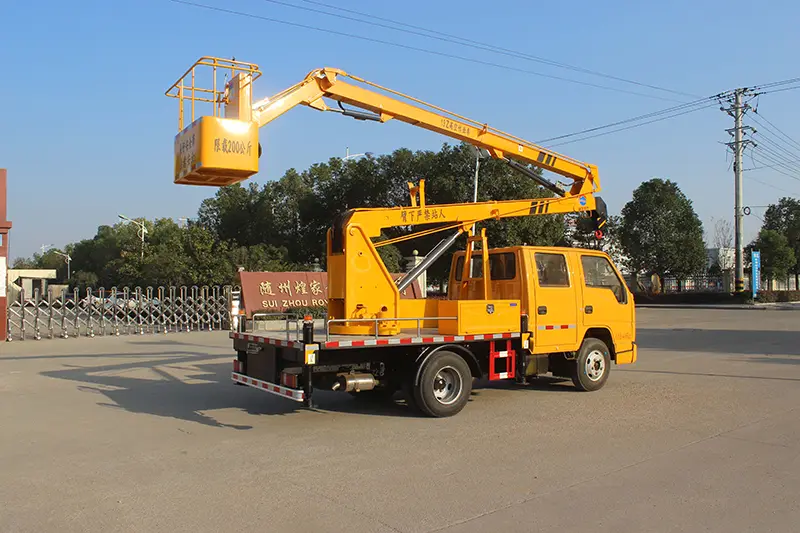

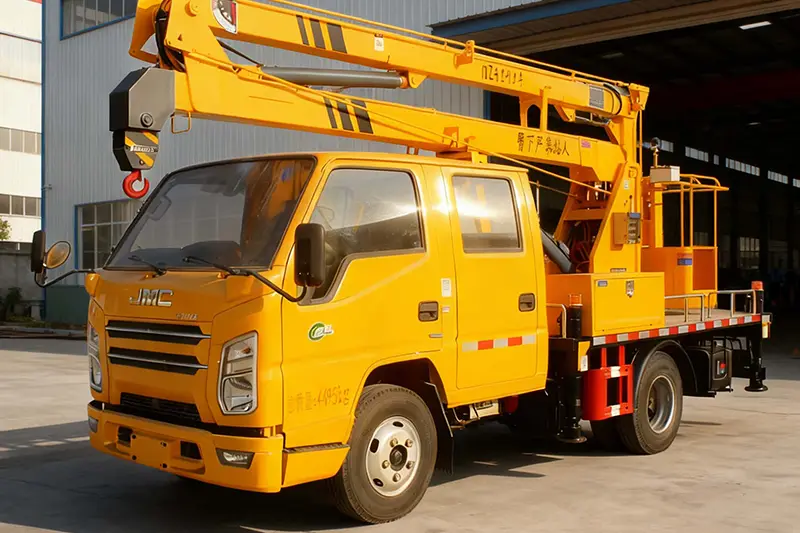

Medium Articulating Boom Work Truck

The Medium Articulating Boom Work Truck transports operators and tools to designated high-altitude positions via the folding, luffing, and slewing of the working arm to carry out overhead operations. Its design ensures smoother operation for staff, enabling safer delivery to work positions for tasks including maintenance, installation, cleaning, photography, shipbuilding, chemical engineering, power emergency repair, tree pruning, streetlight replacement, and other engineering high-altitude emergency work!

The Medium Articulating Boom Work Truck’s boom and outriggers are made of low-alloy Q345 profiles with no welds around, featuring an attractive appearance, high load-bearing capacity and strong strength.The Medium Articulating Boom Work Truck’s H-type outriggers offer excellent stability; they can be operated simultaneously or individually, ensuring flexible operation and adaptability to various working conditions. The slewing mechanism is adjustable for easy tuning.

Product Parameters

The Medium Articulating Boom Work Truck is equipped with a three-section folding boom, a single hydraulic lifting cylinder with bidirectional balance valves, and electrically controlled boom lifting. The four adjustable hydraulic outriggers are fitted with bidirectional hydraulic locks (manually operable, with independent control for each outrigger).

There are two sets of operating platforms (upper and lower), along with a 1-ton lifting hook. The maximum working height is 13 meters, the maximum working radius is 5.6 meters, and the maximum lifting capacity is 1 ton.

The turntable supports bidirectional 360° rotation, adopting an advanced worm gear reduction mechanism (with self-lubrication and self-locking functions). Later maintenance can be easily achieved by adjusting the bolt positions.
