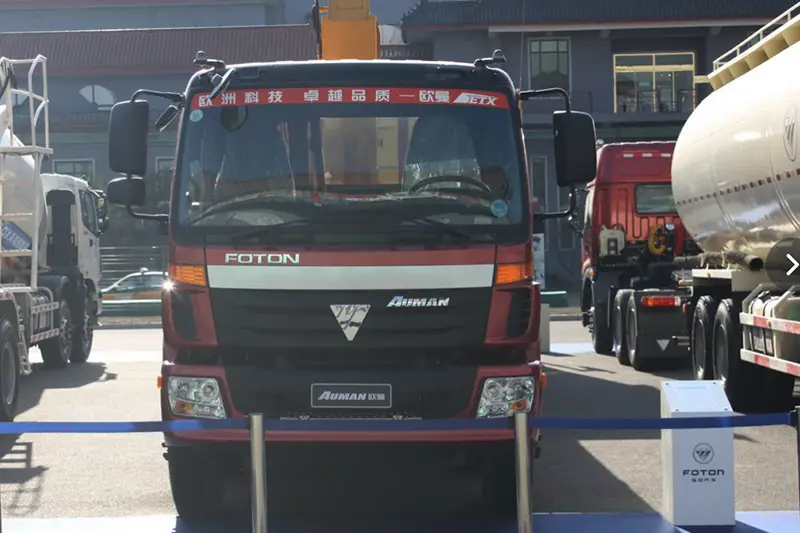

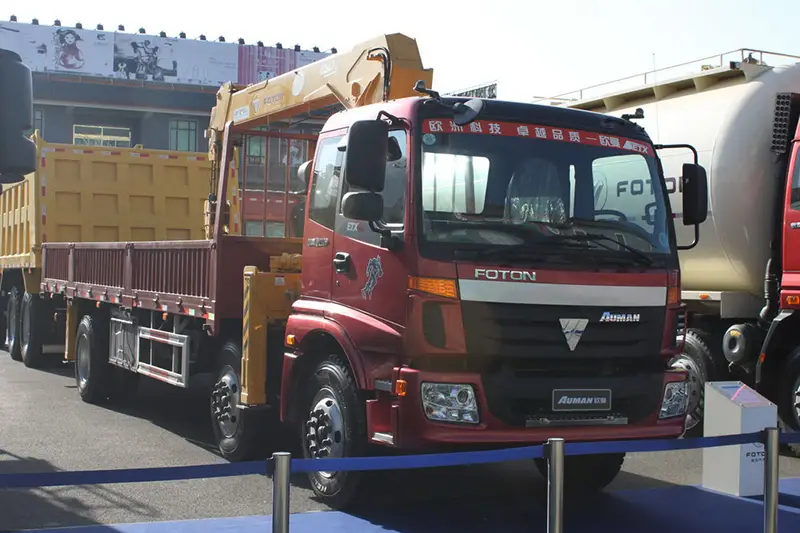

Truck with Crane
The Truck with Crane is produced by Hubei Runli Special Automobile Co., Ltd.; we are one of the leading manufacturers and suppliers in China.our factory has the latest technology and production equipment, which can provide customers all over the world very good service.
The Truck with Crane combines robust chassis engineering with versatile lifting capabilities, designed for construction, logistics, and infrastructure projects. Featuring a 210HP powerful engine and 6X2 drive configuration, this vehicle delivers exceptional performance for cargo transportation and on-site lifting operations.
Key Features
1. Powerful Performance
210HP Diesel Engine: Lovol IE6D210-e4ES engine provides reliable power output
8-Speed Transmission: Smooth gear shifting for various road and working conditions
6X2 Drive Configuration: Optimal balance between fuel efficiency and load capacity
2. Advanced Crane System

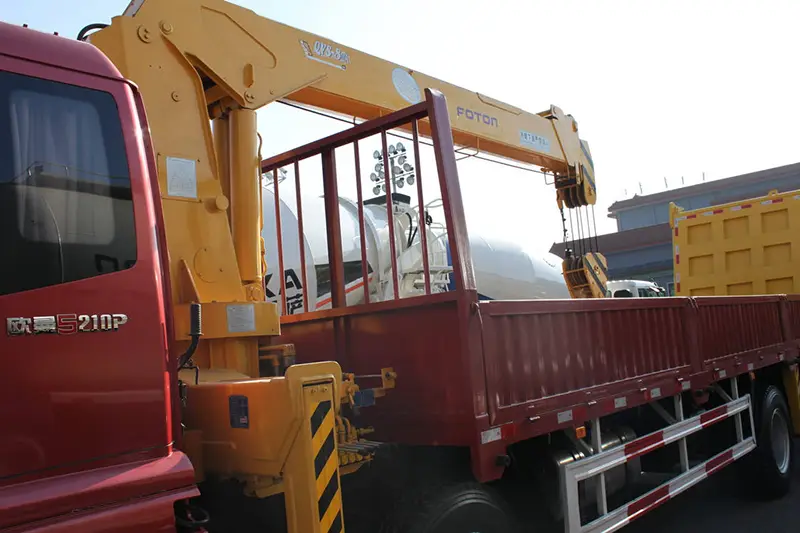

Truck-Mounted Design: Integrated crane and cargo bed for dual functionality
360° Rotation: Full-circle operation for flexible lifting positions

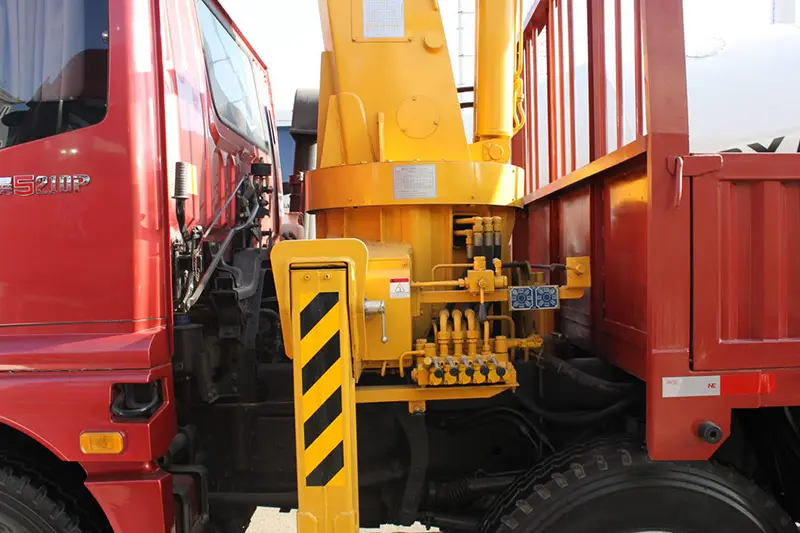

Hydraulic Control: Precise load handling with smooth operation
Safety Protection: Overload protection and emergency stop systems
3. Spacious Cargo Area

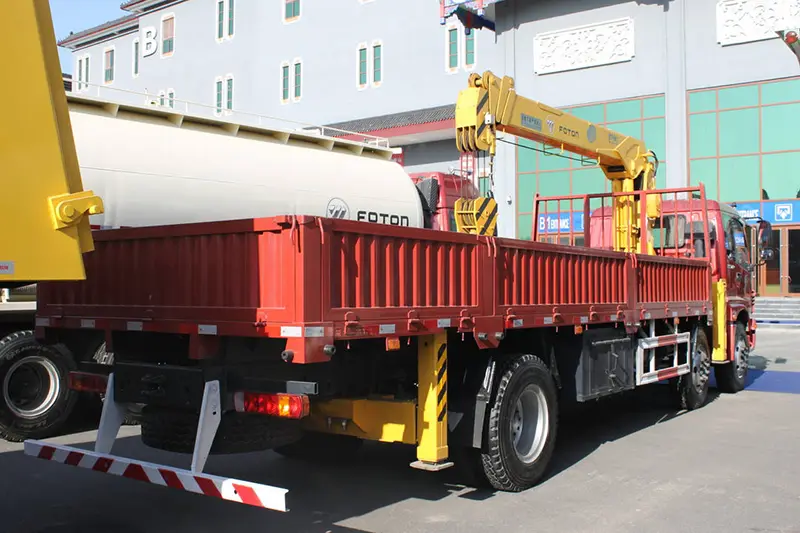

Large Loading Space: Approximately 9.5m cargo bed length
High Load Capacity: 11.07 tons rated payload
Versatile Applications: Suitable for construction materials, equipment, and general cargo
4. Comfortable Cabin
ETX-2420 Flat Roof Cabin: Ergonomic design for reduced driver fatigue
Wide Visibility: Large windshield and side mirrors for safe operation
Air Conditioning: Climate control for comfortable working environment
Technical Specifications
| Category | Parameter | Specification |
| Basic Information | Model | FOTON AUMAN ETX 5 Series |
| Model Code | BJ5252JSQ-XA | |
| Vehicle Type | Truck with Crane | |
| Drive Configuration | 6X2 | |
| License Required | A1, A2, B2 | |
| Dimensions | Overall Length | 12,000 mm (39.4 ft) |
| Overall Width | 2,495 mm (8.2 ft) | |
| Overall Height | 3,550 mm (11.6 ft) | |
| Wheelbase | 2,100 + 5,400 mm | |
| Front Overhang | 1,532 mm | |
| Rear Overhang | 2,968 mm | |
| Weight & Capacity | Gross Vehicle Weight | 25,000 kg (55,115 lbs) |
| Rated Payload | 11,070 kg (24,405 lbs) | |
| Curb Weight | 13,930 kg (30,710 lbs) | |
| Engine | Engine Brand | Lovol |
| Engine Model | IE6D210-e4ES | |
| Maximum Power | 210 HP (154 kW) | |
| Fuel Type | Diesel | |
| Emission Standard | China IV/V (Optional) | |
| Transmission | Gearbox | 8-Speed Manual |
| Clutch | Single Plate, Dry Type | |
| Crane System | Crane Type | Truck-Mounted Hydraulic Crane |
| Maximum Lifting Capacity | 8-10 tons (varies by configuration) | |
| Rotation Angle | 360° Continuous | |

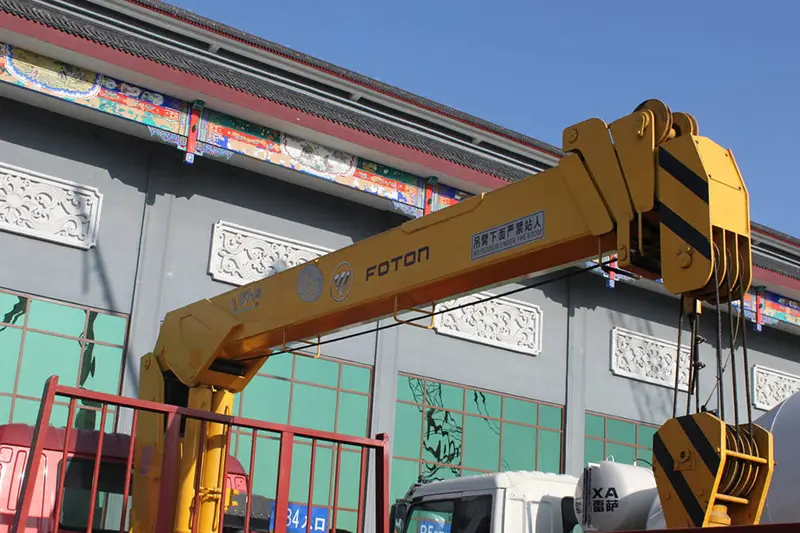

| Boom Sections | 3-4 Sections (Optional) | |
| Maximum Working Radius | 12-14 meters | |
| Hydraulic System Pressure | 25-30 MPa | |
| Chassis | Front Axle Capacity | 7,000 kg |
| Rear Axle Capacity | 18,000 kg (Dual Axle) | |
| Tire Specification | 10.00R20 / 11.00R20 | |
| Number of Tires | 10 | |
| Brake System | Air Brake with ABS | |
| Performance | Maximum Speed | 90 km/h (56 mph) |
| Minimum Turning Radius | ≤12 meters | |
| Gradeability | ≥30% | |
| Fuel Tank Capacity | 200-240 Liters | |
| Cabin | Cabin Type | ETX-2420 Flat Roof |
| Seating Capacity | 3 Persons | |
| Air Conditioning | Standard | |
| Power Steering | Hydraulic Assist |
Standard Equipment
|
Category |
Included Items |
|
Crane Equipment |
Hydraulic crane, remote control, outriggers, hooks, slings |
|
Safety Systems |
ABS, overload limiter, emergency stop, warning lights, reflectors |
|
Lighting |
LED work lights, hazard lights, tail lights, side markers |
|
Cargo Bed |
Steel cargo bed with side panels, tie-down points |
|
Cabin Features |
Air conditioning, power windows, AM/FM radio, adjustable seats |
|
Tools |
Basic tool kit, fire extinguisher, warning triangles |
Optional Accessories
Extended Boom - For increased lifting height and radius
Wireless Remote Control - For safer crane operation from distance
Additional Outriggers - For enhanced stability during heavy lifts
Cargo Bed Extension - For increased cargo capacity
GPS Tracking System - For fleet management and vehicle monitoring
Camera System - Rear-view and work area monitoring
Air Suspension - For improved ride comfort
Custom Paint - Company branding and color schemes
Winter Package - Cold weather starting and heating systems
Tool Box Set - Professional storage compartments
Applications
|
Industry |
Use Cases |
|
Construction |
Building materials transport, equipment lifting, site operations |
|
Infrastructure |
Power pole installation, pipe laying, road construction |
|
Logistics |
Heavy cargo loading/unloading, warehouse operations |
|
Utilities |
Electrical equipment transport, maintenance operations |
|
Landscaping |
Tree transplanting, stone placement, garden construction |
|
Emergency Services |
Accident recovery, obstacle removal, rescue operations |
Safety Features
|
System |
Function |
|
ABS Brake System |
Prevents wheel lock-up during emergency braking |
|
Overload Protection |
Alerts operator when load exceeds safe limits |
|
Outrigger Sensors |
Ensures proper stabilization before lifting |
|
Emergency Stop |
Immediate shutdown of all hydraulic functions |
|
Warning Lights |
LED beacon lights for work zone visibility |
|
Load Moment Indicator |
Real-time display of load weight and radius |
|
Anti-Two-Block System |
Prevents hook block collision with boom tip |
Maintenance Schedule
|
Interval |
Maintenance Items |
|
Daily |
Engine oil level, coolant, brake system, tire pressure, crane inspection |
|
Weekly |
Hydraulic fluid level, wire rope inspection, outrigger function test |
|
Monthly |
Engine filter check, brake pad inspection, lubrication of crane joints |
|
Quarterly |
Full hydraulic system service, transmission check, structural bolt torque |
|
Annually |
Comprehensive safety inspection, emission test, certification renewal |
|
Every 50,000 km |
Major service, engine overhaul check, chassis inspection |
Compliance & Certifications
CCC Certified - China Compulsory Certification
ISO 9001 - Quality management system certified
DOT Standards - Meets applicable transportation regulations
Emission Compliance - China IV/V/VI emission standards (configurable)
Safety Standards - GB/T 3811-2008 Crane Design Specifications
Road Worthiness - Meets national vehicle safety requirements
