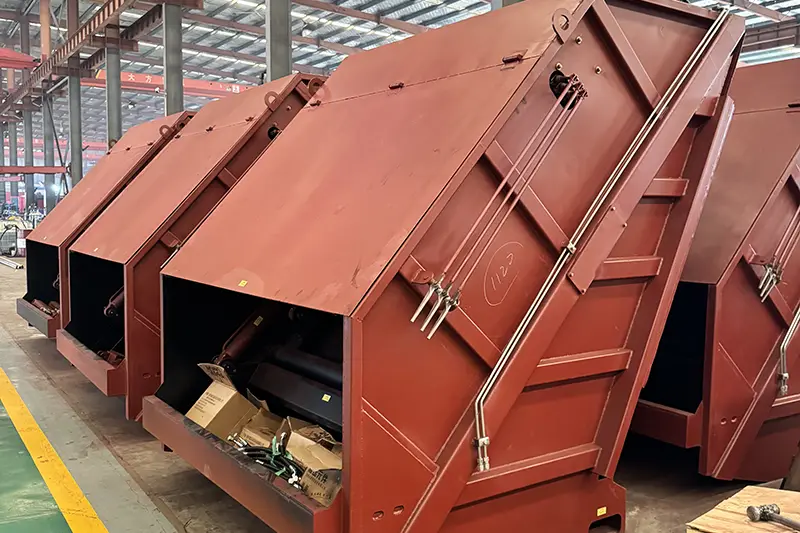

Compressed Garbage Truck Body

The Hubei Runli Compressed garbage truck body is the core functional component of a compactor garbage truck, integrating a garbage hopper, hydraulic compression device, push plate mechanism, and sealed tank body. It realizes high-efficiency collection, compression (reducing volume by over 70%), and discharge of domestic waste, construction waste, and other solid wastes through hydraulic drive. The assembly adopts an integrated design, which is convenient for matching with various truck chassis, and can adapt to complex working conditions such as frequent lifting, high-load compression, and long-term operation, effectively improving sanitation operation efficiency and reducing labor intensity.

Core Configuration & Technical Specifications

Core Advantages

High-Efficiency Compression Performance

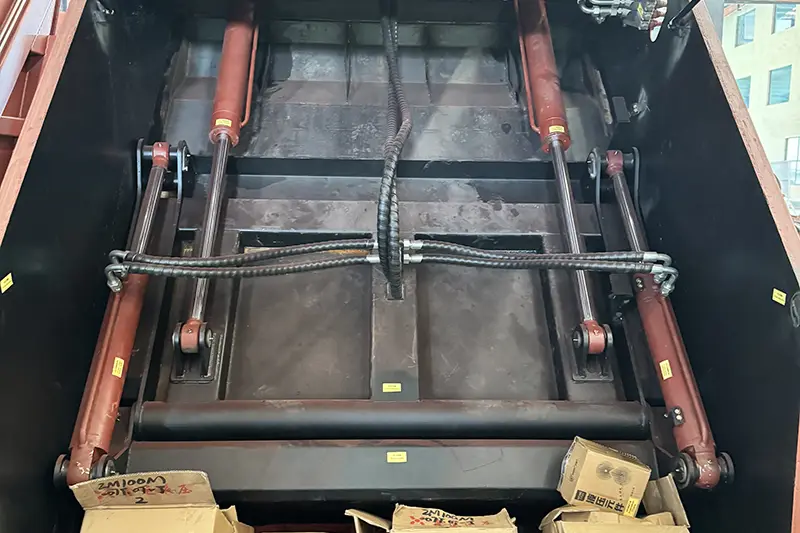

Equipped with dual high-power hydraulic cylinders, the compression force reaches 120-180kN, realizing a compression ratio of over 1:3. It can quickly compact loose garbage, significantly improving the effective loading capacity of the vehicle (increasing by over 200% compared with traditional garbage bins), and reducing the number of transportation trips and operation costs.

Heavy-Duty Load-Bearing & Durability

Adopts Q355B high-strength steel for the frame and tank body, with overall heat treatment and reinforced welding. It can withstand long-term high-load compression and impact, and the anti-rust coating passes the 1000-hour salt spray test, ensuring no rust and deformation in coastal, humid, and high-salt environments, and the service life is increased by 40% compared with ordinary carbon steel assemblies.

Zero-Residue Discharge Design

The full-length push plate and optimized tank body structure ensure 100% emptying of garbage during discharge, with no residue left inside. The inclined hopper is equipped with an anti-return device to prevent garbage from falling back, improving operation efficiency and avoiding secondary pollution.

Universal Compatibility & Safe Operation

Standardized mounting interface matches 98% of domestic and imported truck chassis, supporting quick modification and installation. The hydraulic system is equipped with overload protection and emergency stop function, and the cab/remote dual control mode ensures the safety of operators during high-intensity operation.

Cost-Effective Wholesale Advantage

Factory-direct production reduces intermediate circulation links, providing wholesale prices 12-18% lower than aftermarket components of the same quality. Bulk orders (≥10 sets) enjoy extended warranty (3-year warranty for hydraulic components) and free technical installation guidance, effectively reducing the total cost of use.

Application Scenarios & Case Studies

The Hubei Runli Compressed garbage truck body is widely used in:

Municipal Sanitation: Urban residential area waste collection, community garbage compression, and street cleaning.

Commercial & Public Institutions: Shopping mall, school, hospital, and office building garbage disposal.

Industrial & Construction: Factory area garbage removal, construction site residue handling (suitable for non-corrosive solid waste).

Case: Exported to 35 countries and regions including Southeast Asia, Africa, and the Middle East, with over 7,000 sets in service. Clients report a 35% increase in garbage collection efficiency and a 28% reduction in maintenance costs compared with similar products, with a customer satisfaction rate of 98.2%.

Quality Assurance & After-Sales Service

Production & Quality Control

The factory adopts automated production processes such as CNC cutting, robotic welding, and hydraulic system commissioning. Each Hubei Runli Compressed garbage truck body must undergo hydraulic pressure testing, compression cycle testing, and leak detection before delivery, with a qualified rate of 100%, meeting ISO 9001 international quality standards.

Warranty & Maintenance

2-year comprehensive warranty on the entire assembly (3-year warranty for hydraulic cylinder and control unit), with lifetime technical support. For bulk customers, free on-site installation guidance and operator training are provided to ensure quick deployment.

Customization Support

Supports OEM/ODM services for volume, compression ratio, and control mode, with a 20-day lead time for small orders and 35 days for bulk orders, meeting the personalized needs of different customers.

Packaging & Shipping

Adopts fixed steel frame packaging with shockproof and anti-collision measures to avoid transportation damage. Supports FOB/CIF/CFR shipping from Wuhan, Shanghai, and other ports, and provides door-to-door delivery service for bulk orders.

Why Choose Hubei Runli as Your Supplier?

As a trusted China-based manufacturer and supplier of Hubei Runli Compressed garbage truck body, we offer:

Stable Production Capacity: Annual output of 4,500+ sets, supporting large-scale wholesale orders for sanitation companies and vehicle modification factories.

Global Certification: Meets ISO 9001 and GB/T national standards for special vehicle components, with third-party testing reports available for all models.

One-Stop Service: From product design, mass production, and delivery to after-sales maintenance, we provide full-process technical training, spare parts supply, and on-site support for global clients.

Proven Global Track Record: Long-term cooperation with more than 70 overseas sanitation manufacturers and distributors, establishing a stable export service system, and providing customized solutions for different regional market demands.

Target Buyer Persona

Primary Target: Municipal Sanitation Companies & Environmental Management Departments

Needs: High-efficiency, durable compressed garbage upper assemblies to improve urban sanitation operation efficiency and meet environmental protection standards.

Pain Points: High failure rate of standard components, high maintenance costs, and low garbage loading capacity of traditional bins.

Key Interests: Compression ratio, load capacity, sealing performance, and bulk procurement pricing.

Secondary Target: Vehicle Modification Factories & Sanitation Equipment Distributors

Needs: High-quality, compatible upper assemblies to match custom compressed garbage truck modifications and expand product lines.

Pain Points: Inconsistent product quality, long delivery cycles, and poor after-sales service.

Key Interests: Universal chassis compatibility, customization flexibility, and supplier technical support.

Tertiary Target: Property Management Companies & Industrial Enterprises

Needs: Reliable compressed garbage upper assemblies for daily waste management, with low maintenance requirements.

Pain Points: Difficult operation of professional equipment and high total life cycle cost.

Key Interests: Ease of operation, durability, and after-sales service.
