22m Aerial Work Platform Truck

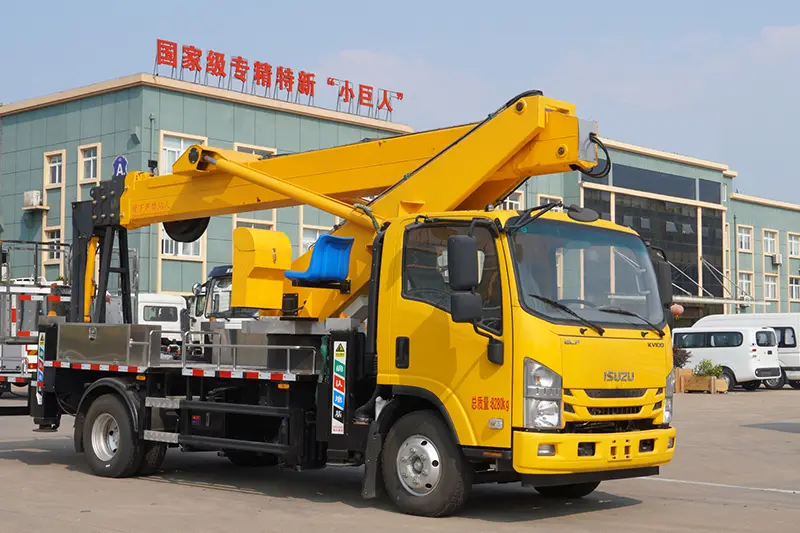

The ISUZU ELF 100P 22m Aerial Work Platform Truck is a mature, high-end special aerial operation vehicle independently developed and produced by Hubei Runli Special Automobile Co., Ltd., integrating advanced electro-hydraulic control technology and lightweight design concepts, with leading technical performance among international similar products. It is widely used in urban street lamp maintenance, municipal engineering construction, aerial pipeline installation, landscaping pruning, emergency rescue and other aerial operation scenarios, combining high efficiency, safety and economy, and becoming the preferred equipment for global engineering and construction enterprises for aerial operation.

Core Product Advantages & Performance Highlights

2.1 Lightweight & High Convenience, Urban Access Unrestricted

This ISUZU ELF 100P 22m Aerial Work Platform adopts high-strength ultra-thin steel material and optimized lightweight design, with total weight less than 4.5t and overall length less than 6m, fully compliant with national and international traffic regulations. It realizes unrestricted access to urban areas without additional passes, compact size brings strong maneuverability, flexible driving and operation in narrow streets and construction spaces; lightweight design also reduces fuel consumption and toll fees, lowering overall operating costs, with outstanding economic efficiency.

2.2 Energy-Saving & High Efficiency, Excellent Fuel Economy

The vehicle is 40% lighter than traditional aerial platform models, bringing remarkable fuel-saving effect: per 100km fuel consumption reduced by 1.2L-2.4L, fully complying with relevant fuel efficiency assessment standards. Low vehicle weight not only saves operation cost, but also improves vehicle mobility and stability, with low center of gravity design, adapting to various narrow and complex working environments, ensuring stable operation even in limited spaces.

2.3 Superior Operation Performance & Wide Working Range

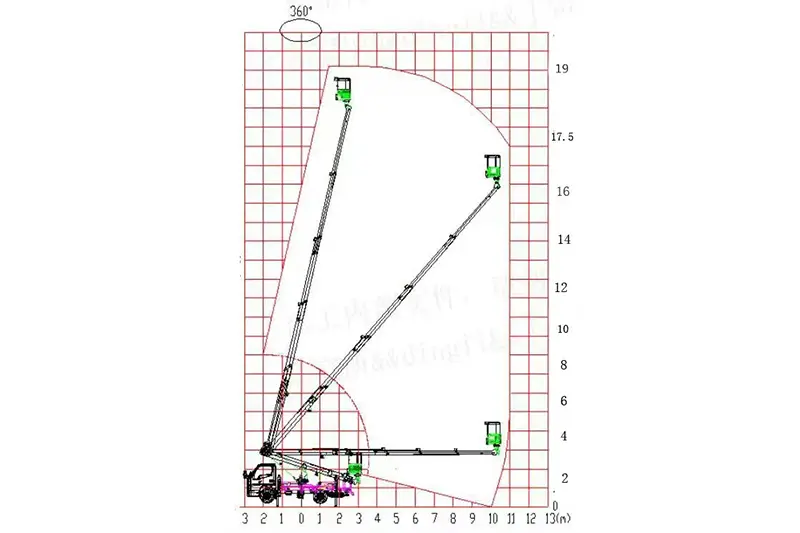

With maximum working height of 22m and maximum working radius of 11m, equipped with three-section synchronous telescopic hexagonal boom, supporting ±360° continuous turret slewing without blind spots, full working range coverage. The platform adopts load-sensing electro-hydraulic proportional control, stepless speed regulation, smooth and fast operation without jitter; rear-mounted working platform with step-type escalator, built-in lighting for convenient night operation, fully meeting diverse aerial operation needs.

2.4 Comprehensive Safety Configurations, All-Round Protection

This 22m Aerial Work Platform Truck is equipped with a full set of safety systems to ensure operation safety: upper & lower vehicle interlock device, emergency electric hydraulic pump, two-way hydraulic lock and balance valve to prevent boom accidental falling; vehicle level gauge for real-time tilt monitoring to avoid overturning risk; equal-volume cylinder leveling system for automatic platform leveling; intelligent load limiting and dangerous operation alarm system, plus rigorous factory dynamic and static load testing, ensuring absolute safety under all working conditions.

2.5 Humanized & Durable Design, Easy Maintenance

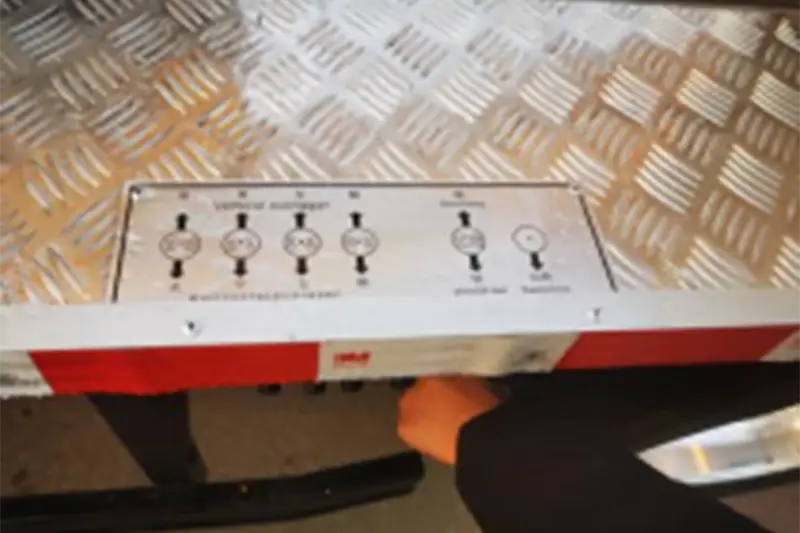

Ergonomic design runs through the whole vehicle: turret equipped with precision control box and comfortable seat, hydraulic joystick for precise control, intuitive operation interface; box-type outriggers with double-sided operation, stable support; FRP working bucket with high durability, humanized armrests to reduce operator height anxiety; external telescopic oil cylinders and built-in hydraulic pipes, easy for fault detection and daily maintenance, long service life of core components.

Key Technical Parameters

Quality Assurance & Production Strength

Every ISUZU ELF 100P 22m Aerial Work Platform Truck undergoes strict R&D verification and factory testing, including structural safety check, stability analysis and reliability verification. In addition to rated load testing, each unit undergoes 1.25 times dynamic load testing and 1.5 times static load testing, fully ensuring performance stability. Main control components and transmission parts adopt world-renowned brand parts, with reliable quality; our professional production team and complete testing system provide solid quality backing for global customers.

Packaging, Shipping & After-Sales Service

Runli provides professional export packaging for the Isuzu aerial work platform truck, with full anti-collision, moisture-proof and scratch-proof protection, suitable for sea and land cross-border transportation. We only support FOB and EXW trade terms to ensure safe and stable international transactions, guaranteeing efficient delivery cycles for bulk wholesale orders, and coordinating with your designated freight forwarders for smooth customs clearance. After-sales, we offer a standard 12-month quality warranty, complete English operation and maintenance manuals, exclusive remote video technical operation guidance, and 24/7 online consulting support, solving all after-sales worries for global engineering clients and distributors.

FAQ

Q: Is this aerial platform suitable for narrow urban spaces? Can it enter cities freely?

A: Yes, compact size (length ≤6m, weight ≤4.5t) ensures flexible operation in narrow spaces, and it can drive in urban areas without additional passes, with strong maneuverability.

Q: What safety protections does this aerial work truck have to ensure operation safety?

A: Equipped with interlock device, emergency hydraulic pump, level gauge, balance valve and intelligent alarm system, plus strict load testing, fully protecting operators and equipment.

Q: What warranty and after-sales support do you provide?

A: We offer 12-month quality warranty, remote video technical guidance for operation and maintenance, and can supply original spare parts quickly through our dedicated department.
